Creating a randomly changing demux?

Hi! New here, obviously; I’m trying to create a synth similar to the example in the Making Connections tutorial, but having the input decided via a random expression, as opposed to the timer node. Is there a formula I can plug into the expression node that could do this? I’ve tried using the random node and the true random module, but it doesn’t work.
Thanks for your help!

1 Like

You want a switch that changes randomly at some arbitrary rate?

To make a random value between 0 and 1, plug the random node into the in of a sample and hold, then send it triggers to get a random value. There is also a module in the library called “gatable sample and hold” that does this for you.


Then map the 0-1 value across the range you need. If the deMux has 8 outs then the value range is 0 to 7.999. If you only use the first 3 outputs the range is 0-2.99.

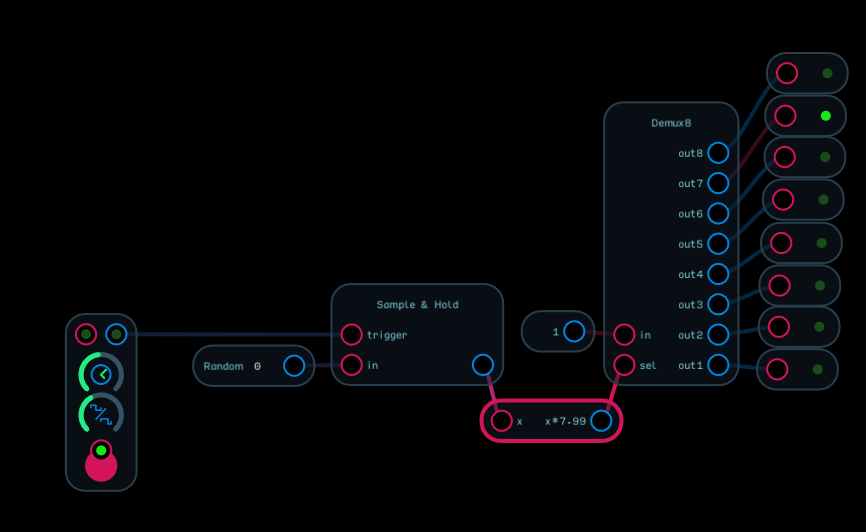

here is the patch, which you can copy and paste if it it’s what you want.

random demux.audulus (26.4 KB)

2 Likes

Thank you! I actually only have the iPad version right now, but I really appreciate including download link.

2 Likes

arg, I hope the iOS download gets sorted soon :skull_and_crossbones:

2 Likes

Btw, what type of trigger is that on the far left?

1 Like

If you PM me your email I’ll send the patch to you :slight_smile:

1 Like

34%20PMthat is a clock.

2 Likes
